HPE ProLiant DL120 Generation9 (Gen9

The HPE ProLiant DL120 Gen9, an enterprise class design packed in a dense 1U/1-socket form factor, powered by an Intel Xeon E5-2600 v3/v4 series processor. Offering a combination of performance, redundancy, expandability as compared to the traditional 1P servers making the DL120 Gen9 ideal for the growing needs of virtualisation and general purpose workloads.

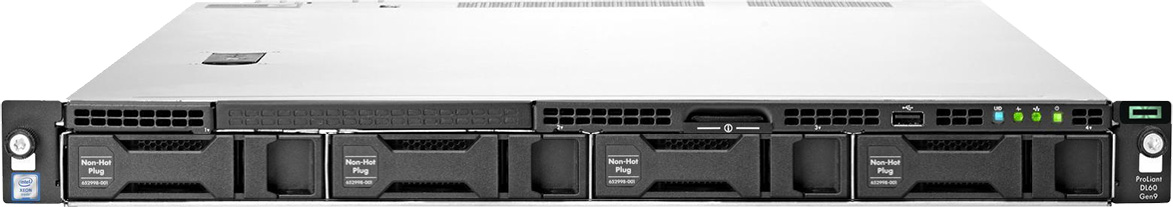

HPE ProLiant DL120 Gen9 E5 v4 - 4 Bay LFF 4x3.5 - Non Hot-Swap Drives
From: $1,825.98

LFF Large Form Factor Drives

Fixed Drives

4 Drives

Xeon E5 2600 v4

HPE ProLiant DL120 Gen9 E5 v4 - 4 Bay LFF 4x3.5
From: $1,887.76

LFF Large Form Factor Drives

Hot-Swap Drives

4 Drives

Xeon E5 2600 v4

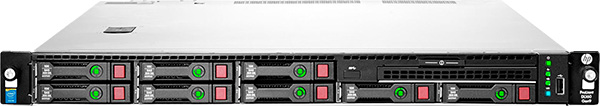

HPE ProLiant DL120 Gen9 E5 v4 - 8 Bay SFF 8x2.5
From: $2,093.25

SFF Small Form Factor Drives

Hot-Swap Drives

8 Drives

Xeon E5 2600 v4

Do you need a dense server solution for virtualisation, but have difficulty limiting your licensing costs? The HPE ProLiant DL120 Gen9 Server is enterprise class design packed in a dense 1U/1-socket form factor.

Offering a combination of performance, redundancy, and expandability as compared to traditional 1P servers, it makes the HPE ProLiant DL120 Gen9 Server ideal for small and midsize businesses and Enterprise customers. It also meets the growing needs of running virtualization and general purpose workloads.

  • Introducing Intel® Xeon® E5-2690 v4 14-core processor support.
  • New LFF 10 TB SAS and SATA hard disk drives bring maximum capacity to 40 TB.
  • The HPE ProLiant DL120 Gen9 is now Docker ready.
  • Microsoft® Windows® Server 2016 support included.
  • 25 Gb networking option and 10GBaseT FlexFabric option support included.

Combination of Performance and Expandability in a Dense Form Factor

The HPE ProLiant DL120 Gen9 Server supports one Intel® Xeon® E5-2600 v3/v4 or E5-1600 v3/v4 processor offering improved performance and efficiency in a dense 1U chassis.

HPE DDR4 SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 256 GB max capacity with speeds up to 2400 MHz.

HPE SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Supports up to 4 LFF and 8 SFF 12 Gb/s HDD/SSD options with maximum capacity of up to 40 TB.

Up to three PCIe 3.0 riser slots to support a GPU and networking cards offering increased I/O bandwidth and seamless expandability.

Cost Optimized 1-socket Solution for Enterprise Class Workloads.

The HPE ProLiant DL120 Gen9 Server helps reduce virtualization licensing costs with its 1U/1-socket cost optimized design for SMBs and service providers.

Embedded with 2x1GbE, up to three PCIe slots and choice of HPE FlexibleLOM provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

Agile Infrastructure Management for Accelerating IT Service Delivery

With HPE ProLiant DL120 Gen9 Server, HPE OneView provides infrastructure management for automation simplicity across servers, storage and networking.

Online personalized dashboard for converged infrastructure health monitoring and support management with HPE Insight Online.

Configure in Unified Extensible Firmware Interface (UEFI) boot mode to provision local and remote servers with HPE iLO with Intelligent Provisioning, Scripting Toolkits or RESTful Interface Tool.

Embedded management to deploy, monitor and support your server remotely, out of band with HPE iLO.

Optimize firmware and driver updates and reduce downtime with HPE Smart Update, consisting of HPE Smart Update Manager (SUM) and HPE Service Pack for ProLiant (SPP) tools.

Energy Efficiency by Design

80 PLUS gold certified entry-level redundant HPE Power Supplies provide up to 92% efficiency which combined with Hewlett Packard Enterprise power management features leads to reduction of power consumption and expense.

Improved ambient temperature standard with ASHRAE A32 helps customers reduce cooling expense.

Technical Specifications:

Processor family

  • Intel® Xeon® E5-2600 v3 product family
  • Intel® Xeon® E5-1600 v3 product family
  • Intel® Xeon® E5-2600 v4 product family
  • Intel® Xeon® E5-1600 v4 product family

Number of processors

  • 1

Processor core available

  • 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4

Processor cache

  • 10MB LLC
  • 15MB LLC
  • 20MB LLC
  • 25MB LLC
  • 30MB LLC
  • 45MB LLC
  • 50MB LLC
  • 55MB LLC

Processor speed

  • 3.6GHz

Form factor (fully configured)

  • 1U

Form factor chassis

  • Rack

Power supply type

  • (2) Entry-Level

Expansion slots

  • (3) Maximum - For detail descriptions reference the QuickSpecs

Memory, maximum

  • 256GB

Memory slots

  • 8 DIMM slots

Memory type

  • DDR4 SmartMemory

Memory protection features

  • Memory Online Spare Mode

Drive description

  • (8) SFF SAS/SATA/SSD or
  • Hot plug and/or Non-hot plug, depending on model

System fan features

  • Hot swap redundant optional

Graphic card

  • Up to 1 single width GPU supported

Network controller

  • 1Gb 361i Ethernet Adapter 0 and/or
  • Optional FlexibleLOM on riser
  • Depending on model

Storage controller

  • Dynamic Smart Array B140i or
  • H240 Host Bus Adapter
  • Smart Array P440/4GB
  • Depending on model

Infrastructure management

  • iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials(standard) iLO Advanced (optional)


  • 3/1/1 Server Warranty includes three years of parts, one year of labor, one year of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional Hewlett Packard Enterprise support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support
