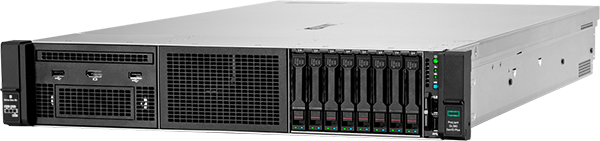

HPE ProLiant DL380 Gen10 Plus Server

Delivering a boost in storage, compute and expansion performance, the adaptable HPE ProLiant DL380 Gen10 Plus server range provides you with the right combination of expandability and scalability.

Designed and built for versatility and resiliency, the dual socket DL380 Gen10 Plus server range is deployable in a variety of environments and powered by 3rd Gen Intel Xeon Scalable processors.




HPE ProLiant DL380 Gen10 Plus 8SFF HPE ProLiant DL380 Gen10 Plus - 8 Bay SFF 8 x 2.5 Drive bays. Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $5,351.27

SFF Small Form Factor Drives

Hot-Swap Drives

8 Drives

Xeon Scalable Processor

HPE ProLiant DL380 Gen10 Plus 8LFF HPE ProLiant DL380 Gen10 Plus - 8 Bay LFF 8 x 3.5 Drive bays. Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $5,438.44

LFF Large Form Factor Drives

Hot-Swap Drives

8 Drives

Xeon Scalable Processor

HPE ProLiant DL380 Gen10 Plus 12LFF HPE ProLiant DL380 Gen10 Plus - 12 Bay LFF 12 x 3.5 Drive bays. Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $5,556.72

LFF Large Form Factor Drives

Hot-Swap Drives

12 Drives

Xeon Scalable Processor

HPE ProLiant DL380 Gen10 Plus 16 SFF (8x SATA/SAS / 8x NVMe) HPE ProLiant DL380 Gen10 Plus - 16 Bay SFF 8xSATA/SAS / 8xNVMe. Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $7,622.63

SFF Small Form Factor Drives

Hot-Swap Drives

8 + 8 Drives + NVMe

Xeon Scalable Processor

HPE ProLiant DL380 Gen10 Plus 24SFF HPE ProLiant DL380 Gen10 Plus - 24 Bay SFF 24 x 2.5 Drive bays. Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $7,788.58

SFF Small Form Factor Drives

Hot-Swap Drives

24 Drives

Xeon Scalable Processor

HPE ProLiant DL380 Gen10 Plus 16 SFF SATA/SAS HPE ProLiant DL380 Gen10 Plus - 16 Bay SFF 16xSATA/SAS Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $8,202.69

SFF Small Form Factor Drives

Hot-Swap Drives

16 Drives

Xeon Scalable Processor

HPE ProLiant DL380 Gen10 Plus 24 SFF (8x SATA/SAS / 16x NVMe) HPE ProLiant DL380 Gen10 Plus - 24 Bay SFF - 8SATA/SAS 16xNVMe. Dual Xeon Gen3 Processor Server. 3x PCIE Slots.
Configure
From: $8,427.51

SFF Small Form Factor Drives

Hot-Swap Drives

8 + 16 Drives + NVMe

Xeon Scalable Processor



Ideal for diverse workloads and environments, the ultra-secure dual processor 2U HPE ProLiant DL380 Gen10 Plus provides scorching-fast performance with the right balance of scalability and expandability. Designed for maximum versatility and resiliency whilst being backed by a comprehensive warranty makes it the best choice for a multitude of environments from Containers to Cloud to Big Data. The industry’s most trusted compute platform, the 2U HPE ProLiant DL380 Gen10 Plus will be the perfect addition to your data centre.

  • The addition of 3rd Gen Intel Xeon Scalable processors: 8362 & 8352M.
  • NVIDIA A10 24GB GPU Supported.
  • NVIDIA T4 16GB GPU Supported.
  • Support for Mixed Use and Read Intensive FIPS NVMe drives.
  • PCIe Gen4 supported, leading to enhanced bandwidth and throughput over the previous generation.
  • Industry standard OCP 3.0 Network Adapter supported.
  • Support for Trimodal (NVMe/SAS/SATA) Smart Array Controllers.

HPE iLO Mobile Application

Allows you to access, deploy and manage your server 24/7 from any location on certain mobile devices.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to find and deploy servers at scale.

Scripting Tools

Provision a multitude of servers using your own scripts to find and deploy with Scripting Tool for Windows and Linux or Scripting Tools for Windows PowerShell.

HPE OneView Standard

You can utilise HPE OneView Standard for inventory, alerting, monitoring health and reporting without extra fees. It can be used to monitor a number of HPE server generations.

HPE Systems Insight Manager (HPE SIM)

Perfect for environments already utilising HPE SIM, it enables you to monitor the health of your HPE ProLiant Servers. It also delivers basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to deliver fast and seamless firmware updates.

Security

HPE ProLiant DL380 Gen10 Plus Servers possess a variety of security features:

  • UEFI Secure Boot and Secure Start support
  • Tamper-free updates – components digitally signed and verified
  • Immutable Silicon Root of Trust
  • Ability to rollback firmware
  • FIPS 140-2 validation
  • Secure erase of NAND/User data
  • Common Criteria certification
  • TPM (Trusted Platform Module) 1.2 option
  • Configurable for PCI DSS compliance
  • TPM (Trusted Platform Module) 2.0 option
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Bezel Locking Kit option
  • Support for Commercial National Security Algorithms (CNSA)
  • Chassis Intrusion detection option
  • Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Technical Specifications:

Processor family

  • 3rd Generation Intel Xeon SP

Processor core available

  • Up to 40 per processor

Processor cache

  • 60 MB/ 57 MB/ 54 MB/ 48 MB/ 42 MB/ 39 MB/ 36 MB/ 24 MB/ 18 MB/ 12 MB

Processor speed

  • Up to 3.6GHz

Form factor

  • 2U

Power supply type

  • Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies (2.6”)

Expansion slots

  • 8, for detailed descriptions reference the QuickSpecs

Maximum memory

  • 12 TB

Memory, standard

  • HPE DDR4 SmartMemory + Intel Optane Persistent Memory 200 Series

Memory slots

  • 32 DIMM Slots

Memory type

  • HPE DDR4 Smart Memory and Intel Optane persistent memory 200 Series

Memory protection features

  • ECC

Drive type

  • 8LFF, 12LFF, 8SFF or 24SFF depending on configuration

System fan features

  • Hot-plug redundant fans, standard

Network controller

  • OCP 3.0 or select stand-up network adapters for primary networking selection + additional/optional stand-up network adapters

Storage controller

  • Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller

Product dimensions (H x W x D)

  • SFF Drives: 8.75 x 44.54 x 71. cm / 3.44 x 17.54 x 28 in. LFF Drives: 8.75 x 44.54 x 74.9 cm / 3.44 x 17.54 x 29.5 in

Weight

  • Minimum: 33.99 kg / 74.94 lbs, Maximum: 33.99 kg / 74.94 lbs depending on configuration.

Infrastructure management

  • HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)


Over our many years of providing HPE quotations for customers, one thing had become abundantly clear. That was just how difficult it was to get a fast and accurate quote on a customised HPE server. A complaint shared by many in this industry, the entire process was slow, outdated and very frustrating.

ServerWarehouse has developed a super-fast, unique online configurator for your HPE ProLiant DL380 Gen10 Plus, allowing you to select from a large range of configurable items to get an instant quote.

Designed with ease of use as a key focus, our industry leading online configurator features all HPE quick spec catalogues. Every order is verified by our technical sales, making sure that your HPE ProLiant DL380 Gen10 Plus Server is fully compatible. We have done all the hard work so you don’t have to, making the process as simple as possible.

3rd Gen Intel Xeon Scalable processors are the foundation for secure and agile data centres. With hardware-based security improved over the previous generation and incredible multi-socket processing performance, 3rd Gen Xeon Scalable CPUs are designed for mission-critical, machine learning, HPC, real-time analytics, artificial intelligence and multi-cloud workloads. 3rd Gen Intel Xeon Scalable processors offer improvements in I/O, memory and storage.

HPE ProLiant DL380 Gen10 Plus - 8 Bay LFF - 8 x 3.5" Drive bays

HPE ProLiant DL380 Gen10 Plus - 8 Bay LFF is a dual socket server powered by 3rd Gen Intel Xeon Scalable CPUs. It supports up to 32 DIMMs of HPE DDR4 Smart Memory/Intel Optane Persistent Memory 200 Series and 3x PCIe Expansion slots.

This server utilises 3.5” drive bays, which are often have higher capacity and are more cost-effective than their 2.5” counterparts.

HPE ProLiant DL380 Gen10 Plus - 12 Bay LFF - 12 x 3.5" Drive bays

HPE ProLiant DL380 Gen10 Plus - 12 Bay LFF is a dual socket server powered by 3rd Gen Intel Xeon Scalable CPUs. It supports up to 32 DIMMs of HPE DDR4 Smart Memory/Intel Optane Persistent Memory 200 Series and 3x PCIe Expansion slots.

This server utilises 3.5” drive bays, which are often have higher capacity and are more cost-effective than their 2.5” counterparts.

HPE ProLiant DL380 Gen10 Plus - 8 Bay SFF - 8 x 2.5" Drive bays

HPE ProLiant DL380 Gen10 Plus - 8 Bay SFF is a dual socket server powered by 3rd Gen Intel Xeon Scalable CPUs. It supports up to 32 DIMMs of HPE DDR4 Smart Memory/Intel Optane Persistent Memory 200 Series and 3x PCIe Expansion slots.

The system features 8x 2.5” drive bays for their denser storage capabilities. They are also generally more power efficient than 3.5” storage drives.

HPE ProLiant DL380 Gen10 Plus - 24 Bay SFF - 24 x 2.5" Drive bays

HPE ProLiant DL380 Gen10 Plus - 24 Bay SFF is a dual socket server powered by 3rd Gen Intel Xeon Scalable CPUs. It supports up to 32 DIMMs of HPE DDR4 Smart Memory/Intel Optane Persistent Memory 200 Series and 3x PCIe Expansion slots.

The system features 8x 2.5” drive bays for their denser storage capabilities. They are also generally more power efficient than 3.5” storage drives.

All custom HPE builds are comprehensively tested by our experienced engineers before leaving our build facility, meaning your customised HPE server will arrive pre-built and fully tested.

Wondering what the differences are between the plus and standard DL380 Gen10 server? ...look no further than our Compare DL380 Gen 10 to DL380 Gen 10 Plus article.
