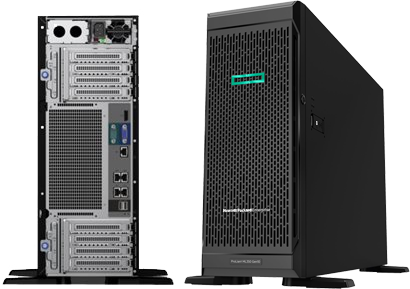

HPE ProLiant ML350 Gen10 Server

The HPE ProLiant ML350 Gen10 server range is built to power a wide range of workloads with a short and flexible rack-mountable chassis designed to fit in a wide range of physical locations.

Boasting 2 processor sockets that support the latest Xeon Scalable Processor family, the HPE ProLiant ML350 Gen10 server delivers the ideal levels of performance and expandability for growing SMBs, remote/branch offices of large enterprises and data centers.




HPE ML350 Gen10 4 LFF Tower Server
Configure
From: $2,461.51

LFF Large Form Factor Drives

Hot-Swap Drives

3TB 24x 128GB RDIMM @2400MHz

4 Drives

Xeon Scalable Processor

HPE ML350 Gen10 8 SFF Tower Server
Configure
From: $2,669.49

SFF Small Form Factor Drives

Hot-Swap Drives

3TB 24x 128GB RDIMM @2400MHz

8 Drives

Xeon Scalable Processor


  • Support for the full lineup of Intel Xeon Scalable Processors
  • 2600 MT/s HPE DDR4 SmartMemory RDIMM/LRDIMM offering 8, 16, 32, 64 or 128 GB.
  • Advanced security through firmware and standard HPE ML350 chassis features
  • GPU support for graphic-intensive applications such as VDI and machine learning
  • Supports Intel® Xeon® Processor Scalable Family
  • Build a fully-functional server with HPE ClearOS Software with no upfront cost.

Perform with Unmatched Versatility

HPE ProLiant ML350 Gen10 supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.

Up to 24 DIMM slots to support the 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.

It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.

GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.

Expand When Your Business Needs Grow
n

HPE ProLiant ML350 Gen10 delivers expandability with a wide range of drive upgrade options. Supporting 8 to 24 SFF or 16 SFF when mixed with optional 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive options protecting your IT investment in hybrid environment.

Large expansion capacity with (8) PCIe slots, (6) USB ports, 5U rack conversion, and power supply options.

Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE or 25GbE adapters provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.

HPE Security Innovations

HPE ProLiant ML350 Gen10 is one of the HPE industry standard servers with major firmware anchored directly into the silicon security protection built in across the server lifecycle starting with Silicon Root of Trust.

Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.

Industry Leading Services and Ease of Deployment

The HPE ProLiant ML350 Gen10 comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.

Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Technical Specifications:

Processor

  • Intel® Xeon® Scalable processors, 1 or 2, depending on model SKU

Processor family

  • Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series Intel® Xeon® Scalable 4100 series Intel® Xeon® Scalable 3100 series

Processor number

  • 1 or 2

Processor core available

  • 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 6 or 8 or 4, depending on model SKU

Processor cache

  • 38.50 MB L3 - 8.25 MB L3, depending on model SKU

Processor speed

  • 3.6 GHz, maximum depending on processor SKU

Form factor

  • 4U tower with rack conversion capability

Power supply type

  • HPE Flexible Slot Redundant Power Supply modules 500W / 800W / 1600W, depending on model SKU, or HPE Standard 500W Non-Hot-Plug/non-RPS Power Supply

Expansion slots

  • 8-slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard in 2P model. For detail reference QuickSpecs.

Maximum memory

  • 3.0 TB with 128 GB DDR4 DIMM

Memory, standard

  • 16 GB (1 x 16GB) RDIMM or depending on model SKU

Memory slots

  • 24 DIMM slots

Memory type

  • HPE DDR4 SmartMemory

Memory protection features

  • Advanced ECC Memory Online Spare Mode Memory Lock Step Mode

Drive type

  • 24 SFF SAS/SATA HDD/SSD or 16 SFF SAS/SATA HDD/SSD and 8 SFF NVMe SSD 12 LFF SAS/SATA HDD/SSD 12 LFF NHP SATA HDD Depending on model. Upgrade option kits are available.

Included hard drives

  • None Ship Standard

System fan features

  • Standard 2 fans, none-hot-plug Optional 4 additional fans, hot-plug and N+1 redundancy Reference QuickSpecs for config. detail.

Network controller

  • HPE Ethernet 1Gb 4-port 369i Adapter

Storage controller

  • 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array E208i-a, depending on model SKU

Product dimensions (H x W x D)

  • 18.2 x 25.51 x 6.85 in

Weight

  • 46.30 lb

Infrastructure management

  • HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional)

Security

  • UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation (iLO 5 certification in progress) Common Criteria certification (iLO 5 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates components digitally signed and verified Secure Recovery recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 1.2 option TPM (Trusted Platform Module) 2.0 option Front bezel key-lock feature standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard

Warranty

  • 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support


With years of experience providing HPE quotations for customers. It has become increasingly clear how hard it was to get a quick and accurate quote on a customized HPE server. This is a complaint that has been expressed by many within the industry. The process was slow, frustrating and extremely outdated.

ServerWarehouse has developed a super-quick, unique online configurator enables you to configure your HPE ProLiant ML350 Gen10 by selecting from a huge range of configurable items and obtain an immediate quote.

Our industry leading configurator is designed to be very easy to use and features all HPE quick spec catalogues, enabling you to configure online and receive immediate prices.

Every order is verified by our technical sales team, making sure that your HPE ProLiant ML350 Gen10 Server is fully compatible. We have done all of the hard work so that you won’t have to.

The HPE ProLiant ML350 Gen10 is powered by 2nd Intel Xeon Scalable processor family.

Intel Xeon Scalable processors are available in four ranges; Bronze, Silver, Gold and Platinum.

Xeon Scalable Bronze processors are very effective for small businesses, they are designed to perform best with basic storage servers.

Xeon Scalable Silver processors are designed to providing the speed and security that is needed for a middling IT organisation.

Xeon Scalable Gold processors are made for high intensity and demanding workloads. It delivers superb reliability and airtight security.

Finally, Xeon Scalable Platinum processors deliver outstanding performance for mission critical, machine learning, AI, cloud workloads and real time analytics. These CPUs also provide giant leaps in storage memory, I/O and network technologies. If high performance and the ability to handle ultra-high intensity workloads is what you require, you can’t go wrong with this option.

The HPE ProLiant ML350 Gen10 server features outstanding upgrade potential, superb management options and solid storage choices.

It is a highly flexible, intelligently built Xeon Scalable tower server that provides everything that growing business requires at a cost-efficient price. The storage choices it provides are extensive. The single SFF hot-swap cage in this system can be upgraded to 24 drives in three blocks, as the ProLiant ML350 Gen10 employs the standard 8+8+8 drive bays configuration layout. For maximum storage capacity, you can select models that feature 12 LFF bays certified for 12TB drives. Security is airtight, firmware is validated during start-up with HPE’s silicon root of trust fingerprinting. This blocks the server booting if firmware tampering is detected.

HPE ML350 Gen10 4 LFF Tower Server

The HPE ML350 Gen10 4 LFF Tower Server is a 2U dual socket system configurable with 2x 2nd Intel Xeon Scalable processors and 3TB – (24x 128GB) of memory. It supports 24 modules of Registered 2933Mhz DIMMs (RDIMMs) Memory and features 3x PCI expansion slots.

This server supports LFF (large form factor) drives, which are generally more cost efficient and higher capacity than their SFF counterparts.

HPE ML350 Gen10 8 SFF Tower Server

The HPE ML350 Gen20 8 SFF Tower Server is a 2U dual socket system, that can be configured with 2x 2nd Intel Xeon Scalable processors. It supports up to 24 modules of Registered 2933Mhz DIMMs (RDIMMs) Memory and has 3x PCI expansion slots.

This server utilizes SFF (small form factor) drives which offer denser storage capabilities. They also tend to be more power efficient than 3.5” storage drives.
