HPE ProLiant DL20 Generation9 (Gen9)

The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200v5 processors provides a unique blend of enterprise class capabilities & value.

It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

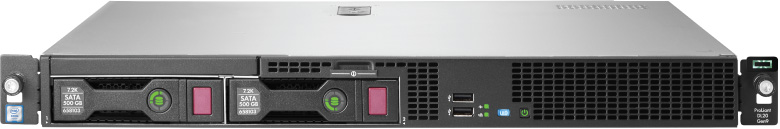

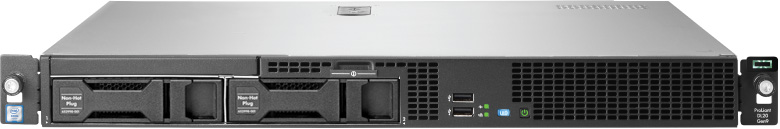

HPE ProLiant DL20 Gen9 E3 v5 - 2 Bay LFF 2x 3.5 - Non-Hot Plug
Configure
From: $754.48

LFF Large Form Factor Drives

Fixed Drives

64GB 4 x 16GB RDIMM @2400MHz

2 Drives

Xeon E3 1200 v5

HPE ProLiant DL20 Gen9 E3 v5 - 2 Bay LFF 2x 3.5
Configure
From: $826.38

LFF Large Form Factor Drives

Hot-Swap Drives

64GB 4 x 16GB RDIMM @2400MHz

2 Drives

Xeon E3 1200 v5

HPE ProLiant DL20 Gen9 E3 v5 - 4 Bay SFF 4x 2.5
Configure
From: $883.36

SFF Small Form Factor Drives

Hot-Swap Drives

64GB 4 x 16GB RDIMM @2400MHz

4 Drives

Xeon E3 1200 v5


The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel® Pentium®, Core i3 and E3-1200 v5 processors provides a unique blend of enterprise-class capabilities at a great value - making it an ideal rack server platform for growing businesses and service providers.

It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. The HPE ProLiant DL20 Gen9 Server offers a range of Hewlett Packard Enterprise qualified options to fit most needs - like affordable drives for light workloads or solid state drives for the demanding requirements; from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power Supply; from multiple storage controllers to the HPE FlexibleLOM networking cards - helping customers find the right configuration for their workloads.

  • New LFF hard disk drives with up to 10 TB increases storage capacity to 20 TB.
  • Microsoft® Windows® 2016 support.
  • The HPE ProLiant DL20 Gen9 server is now Docker ready.
  • NVIDIA M2000 GPU support included for graphics intensive workload.

Optimized Reliable Solution

The HPE ProLiant DL20 Gen9 Server is a 1P 1U rack server that combines the right balance of performance, expandability, reliability and manageability for a variety of business needs.

The HPE ProLiant DL20 Gen9 Server combines a dense and compact form factor with redundant power supply capability which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.

Customers can protect against data loss and downtime with the enhanced error handing of HPE DDR4 ECC memory options while also improving workload performance and power efficiency.

Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.

Your business cannot afford disruptions due to downtime on your server. HPE Insight Online with HPE Insight Remote Support provides 24x7 remote monitoring with anywhere, anytime personalized access to your IT and support status to get your business up and running.

Ease of Use for Many Environments and Workloads

The HPE ProLiant DL20 Gen9 Server is a short-depth chassis of 15.05-inches providing mobility and easy deployment in a wide variety of environments.

The Hewlett Packard Enterprise embedded management solution based on HPE iLO 4 provides simple, versatile and comprehensive tools to deploy, manage and troubleshoot servers - even for customers with limited IT resources.

The DL20 Gen9 Server has the great quality and design features that are a hallmark of the ProLiant family such as tool-less access to system components and enhanced serviceability.

Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.

Great Combination of Performance and Efficiency

The HPE ProLiant DL20 Gen9 Server supports Flex LOM which enables next-generation network capability for faster data transfer.

You have a wide choice of dual core and quad core Intel Pentium and Xeon® E3-1200 processors with up to 64 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen9 Server.

The DL20 Gen9 Server consumes up to 29% less power compared to the previous generation which combined with the efficient, redundant power supply solution provides you with an Energy Star® certified power saving solution.

Technical Specifications:

Processor family

  • Intel® Xeon® E3-1200 v5 product family
  • Intel® Core i3
  • Intel® Pentium®

Number of processors

  • 1

Processor core available

  • 4 or 2

Processor cache

  • 8MB L3
  • 3MB L3

Processor speed

  • 3.8GHz

Form factor (fully configured)

  • 1U

Form factor chassis

  • Rack

Power supply type

  • (2) Entry-Level

Expansion slots

  • (2) Maximum - For detail descriptions reference the QuickSpecs

Memory, maximum

  • 64GB

Memory slots

  • 4 DIMM slots
  • Maximum

Memory protection features

  • Advanced ECC

Drive description

  • (2) LFF SAS/SATA/SSD or
  • (4) SFF SAS/SATA/SSD
  • Hot plug and/or Non-hot plug, depending on model

System fan features

  • Non-hot plug non-redundant

Graphic card

  • NVIDIA K2200

Network controller

  • 1Gb 332i Ethernet Adapter 2 Ports per controller
  • Applicable to all models

Storage controller

  • Dynamic Smart Array B140i or
  • H240 Host Bus Adapter or
  • Smart Array P440
  • Depending on model

Infrastructure management

  • iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials(optional), iLO Scale-Out(optional) iLO Advanced (optional)

Warranty

  • 1/1/1 Server Warranty includes one year of parts, one year of labor, one year of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support. Additional Hewlett Packard Enterprise support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to www.hpe.com/services/support


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with OEM HPE components we use ensure all of our server and storage solutions meet the strictest quality guidelines demanded from us.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.
